Setting up Windows Event Forwarder Server (WEF) (Domain)

We will setup a Windows Event Forwarder server which will collect event logs from Domain-joined Windows workstations based on subscriptions that we create.

This will allow you to collect domain computer event logs real-time (they really are real-time).
Here’s an example of how they would display.
Once you are done with this series, you may want to send your WEF logs to Elasticsearch and visualize them on Kibana as that is our end goal.
Here’s some of your future dashboards
Anyways, let’s get started.
  • Windows Server for log collection in a domain environment.
  • Create a computer group in your domain (my example will be WEF Computers)
Step 1: Setting up WEF
1. Log in to Windows server in this case (WindowsLogCollector)
2. Launch command prompt nad type: wecutil qc
Hit Y to procceed.
(note: Wecutil.exe is a Windows Event Collector utility that enables an administrator to create and manage subscriptions to events forwarded from remote event sources that support the WS-Management protocol.)
Step 2: Setting up Event Subcriptions
1. Browse to Event Viewer
2. Right click Subscriptions  and create subscription
3. Provide a meaningful subscription name (e.g Application, Security, System)

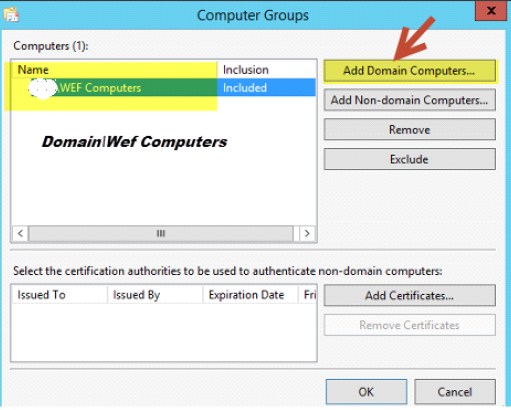

4. Click on Select Computer Groups and add the computer group you’d like to see. In this example I have a computer group called WEF Computers. Now we Add Domain Computers and click OK. (Alternatively, you can add individual systems here as well)
Click “OK” once done.
5. Next Select Select Events and choose the type of logs that you want. (note, if you are unsure what logs to get, just check the event level boxes so you may grab all logs). We limited this to a few selected ones that we’re interested in.

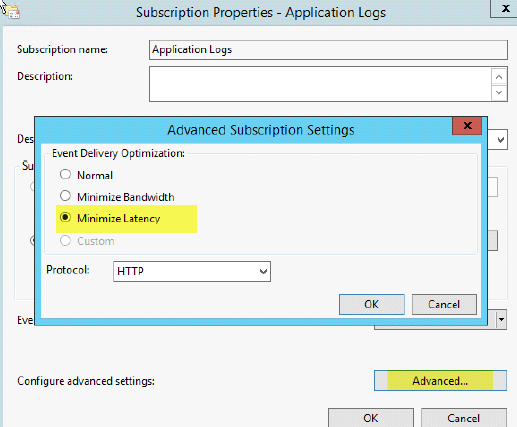

6. Lastly, select Advanced and fill in the option Minimize Latency
Hit OK
You have now created your first Windows Event Forwarder Subscription. Repeat the steps for other logs such as System, Sysmon (See part 2 of this series), etc.
Not sure what Logs to monitor?
Below is a list of Event IDs along with a description. I have a longer list saved; however, these are the ones I believe should be monitored.
Security Logs:
4756A member was added to a security-enabled universal groupSecurity
4740A User account was Locked outSecurity
4735A security-enabled local group was changedSecurity
4732A member was added to a security-enabled local groupSecurity
4728A member was added to a security-enabled global groupSecurity
4724An attempt was made to reset an accounts passwordSecurity
4648A logon was attempted using explicit credentialsSecurity
4625An account failed to log onSecurity
1102The Audit Log was clearedSystem
4624An accout was successfully logged onSecurity
4634An account was logged offSecurity
5038Detected an invalid image hash of a fileSecurity
6281Detected an invalid page hash of an image fileSecurity
Application Logs
EventIDDescriptionSourceLog Name
1000Application ErrorApplication
1002Application Hang- CrashApplication
1001Application Error – Fault BucketApplication
104Event Log ClearedSystem
1102The Audit Log was clearedSystem
4719System Audit Policy was changedSystem
6005Event log Service StoppedSystem
7022-7026,7031,7032,7034Windows Services Fails or crashesSystem
7045A service was installed in the systemSystem
4697A service was installed in the systemSystem
104Event log was clearedSystem
6New Kernel Filter DriverSystem
EventIDDescriptionSourceLog Name
2005A Rule has been modified in the WindowS firewall Exception ListFirewallMicrosoft-Windows-Windows Firewall With Advanced Security/Firewall
2004Firewall Rule Add
2006, 2033Firewall Rules Deleted
Terminal Services
EventIDDescriptionSourceLog Name
23Session Logoff ScceededTerminalServices-LocalSessionManagerMicrosoft-Windows-TerminalServices-LocalSessionManager/Operational
24Session has been disconnectedTerminalServices-LocalSessionManagerMicrosoft-Windows-TerminalServices-LocalSessionManager/Operational
25Session Reconnection SuccededTerminalServices-LocalSessionManager
1102Client has initiated a multi-transport connectionTerminalServices-ClientActiveXCorMicrosoft-Windows-TerminalServices-RDPClient/Operational
We will be setting up Sysmon in our WEF server. As you saw in the previous article, there is no option for Sysmon subscription under event viewer. Let’s resolve that.
Step 1: Setup Sysmon
Download Sysmon from here:
1. Extract to a local destination
2.Launch a command prompt with elevated privileges(right click-run as Administrator)
3.Run the following command: Sysmon.exe -I -h sha256 -n /accepteula
4.You should then see a message similar to the screenshot below, and eventually see the service Sysmon getting started.
5. Verify that sysmon is running by going to windows services.
6. Reboot your system.
7. Now go back and create a new subscription for Sysmon

Now that you have setup a Windows Event Forwarder collector + Sysmon subscriptions, you are now ready to collect these logs from your endpoint.
We will now create a group policy and deploy it to our systems.
  • Create computer OU for GPO deployment (WEF Deployment)
Creating GPO
Step 1: Create WinRM Service and set it to start automatically
Launch your group policy utility and perform the following:
  1. Right click your computer OU and
  2. Create GPO in this domain, and link it here
  3. Provide a name (WEF Deployment) , click OK
  4. Right click your newly created GPO WEF Deployment and select Edit
  5. Navigate to Computer Configuration > Preferences > Control Panel Settings > “New > Service”
    Startup: AutomaticService
    Name: WinRMService
    Action: Start service
    Click Apply
Step 2: Provide Event Log Reader Access
In this step we will add the Network Service & Event Forwarder Server (WindowsLogCollector) to the Event Log Readers and Groups. This will give our WEF server (WindowsLogCollector) access to your domain endpoint event logs.
  1. Right click your WEF Deployment GPO and select Edit
  2. Computer Configuration > Preferences > Control Panel Settings > right click > “New Group”
    Action: Update
    Group Name: Event Log Readers
    Apply > OK
Step 3: Adding WEF Server Subscription addressThis will allow our endpoints to enroll to our WindowsLogCollector subscriptions.
  1. Right click your WEF Deployment GPO and select Edit
  2. Computer Configuration > Policies > Administrative Templates > Windows Components > Event Forwarding > Configure target Subscription Manager >
  3.  Set to EnableShow: Server=http://WindowsLogCollector.domain.COM:5985/wsman/SubscriptionManager/WEC
Click OK
Step 4: Allow Remote server Management through WinRM
  1. Right click your WEF Deployment GPO and select Edit
  2. Computer Configuration > Policies > Administrative Templates > Windows Components > Windows Remote Management (WinRM) > WinRMService > Allow Remote Server Management through WinRM
    Set: EnableiPv4 Filter: *   (or you may enter just the IP address of your WindowsLogCollector)
    IpV6 Filter: *  (you may uncheck this)

We are now done!
Go back to your WindowsLogCollector server and browse to the Event Viewer, you should see the endpoints start to register and logs under Fowarded Events.
(Note: This might take up to 90 min depending on how often our GPO refreshes. You may want to run gpupdate /force on your endpoints to refresh group policy and receive these changes immediately. Additionally, it may take up to 15 minutes for your endpoints to receive a subscription updates whenever you add or remove an event ID when creating Subscriptions. You may restart the Windows Remote Management (WS-Management) (WinRM) service to trigger the request to our WEF server and receive the update instantly).
Important Note: If you are collecting Security logs, once your endpoint gets the subscription settings, you will need to restart that particular endpoint so the permissions apply and allow you to collect security logs. Otherwise you will be frustrated about not receiving Security Event logs.
Additionally, since you want to collect all endpoint logs, it would be useful to deploy Sysmon to all of your endpoints as well, you may follow this guide on how to accomplish this.
